18KW cooling heating environmental control units ECU air conditioner for military

1. Product Introduction:
ECU(Environment Control Unit) is provides healthy and comfortable environments for
Military Camps, Relief Camps, Field Hospitals, Communication centers, Accommodation
and so on. The unit is one-body design, can start cooling very quickly after power on.No need
special AC engineer to install and testing. The units can supply cooling and heating air for
tent camps and field hospitals are ideal anywhere there is a need for heating and air cooling.
2. Tent Air Conditioner advantages:
The ECU was developed primarily to provide air cooling in tents or transportable buildings.
It not only provides greater comfort but also protects equipment and materials from hot
weather damage. The tent air conditioner is fitted with flexible duct and the unit itself must
be located outside.
The function of the ECU is based on a cooling circuit and powerful fans. The evaporator
section contains the evaporator and a centrifugal fan, which draws warm internal air of the
tent through the cold evaporator and blows out the cooled air through the side or the top of
the unit. The condenser section contains two condenser coils and a large axial fan, returning
the heat taken from the internal air to the outside atmosphere.
The ECU also can heating in the winter too,can supply warm air into the tent in winter at
-45℃.

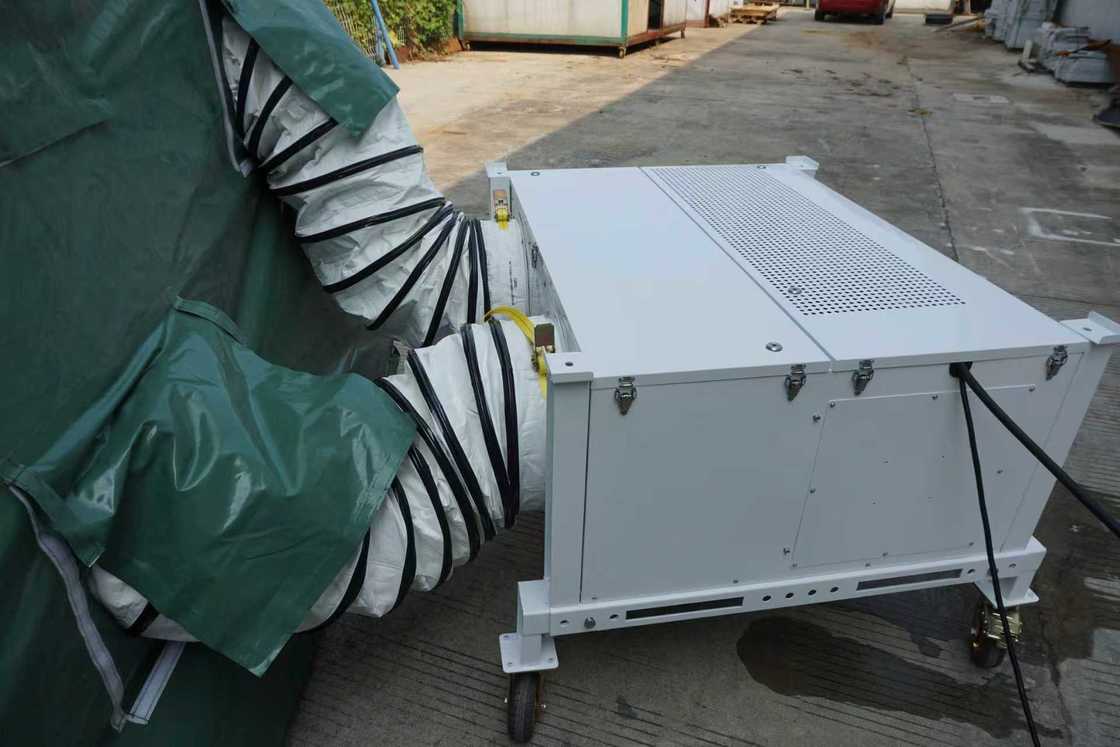

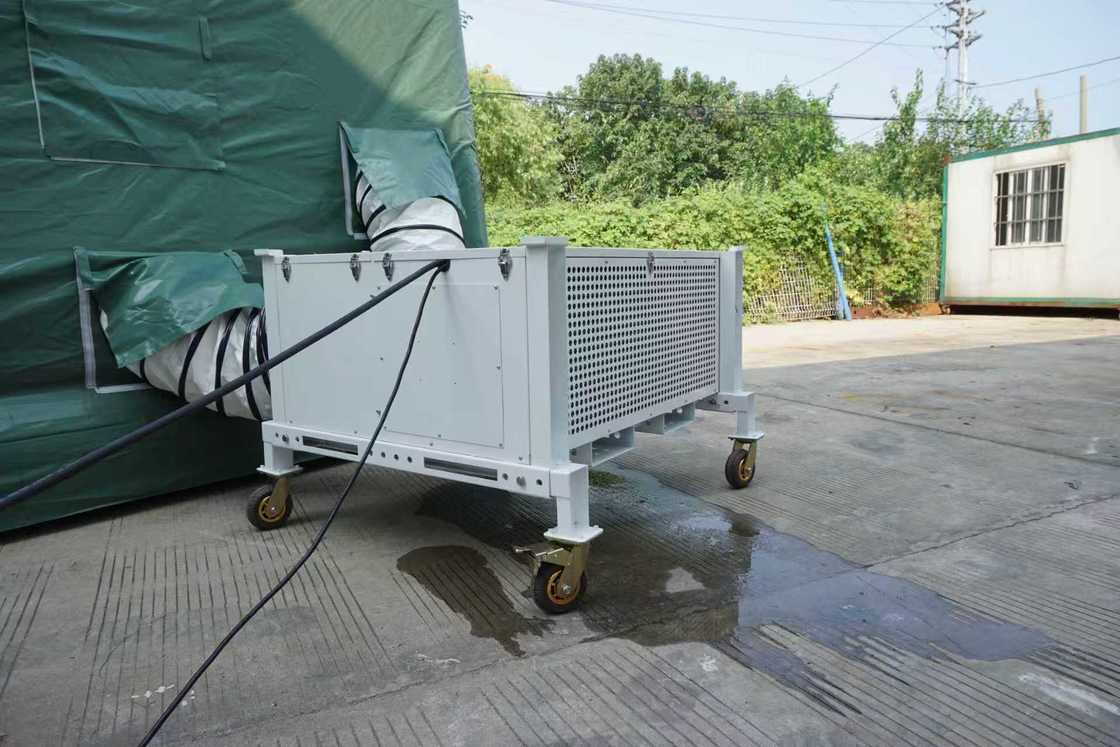

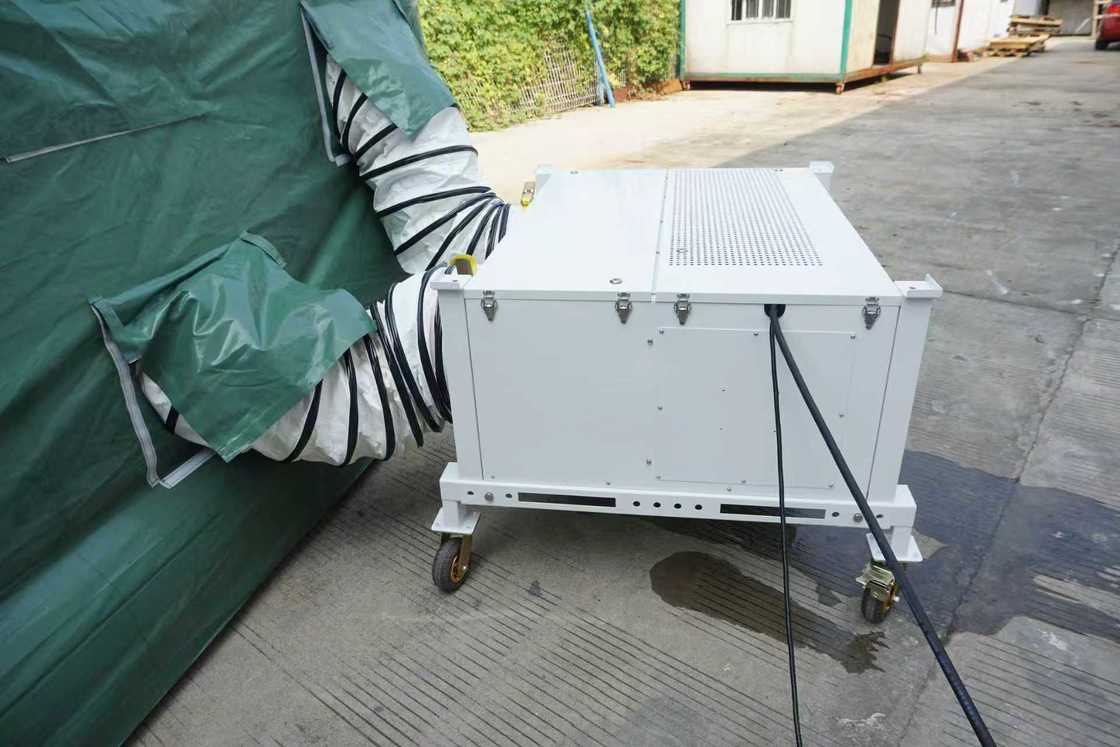

• Easy installing, just connect the flexible duct to the ac and the tent,then connect
the power, then tent air conditioner can start to work;
• Max 5 Sets Can stack each other,save space in your shipment and stock.
• Quick installing, one person just one minute can finish the install.
•The AC is built into a cabinet manufactured from 1mm galvanized and powder
coated steel sheet;
•Top finish painting is standard Olive green, also painting according customer
needs;
•Can provide cooling at ambient temperature up to +55℃, provide heating at
ambient temperature at -45℃;
• Environment-friendly R410a refrigerant gas;
• High/low pressure protect switch ensuring long compressor lifetime;
• Emerson or Danfoss expansion valve can make the ac adjust itself with the
environment better;
• Connect to the mains power supply or a separate diesel generator through a 7.5 m
power cable;
• Temperature control by a room thermostat placed inside the tent;
• Inlet and discharge openings for one Ø410 mm insulated flexible hose, thus
allowing the air conditioning unit itself to be set up outside;

3.Product Specification:
